With
Expansion
Batteries


Backup Power for the
Entire Home

Dual-Voltage in One Unit


Cycles LiFePO4
Long Life

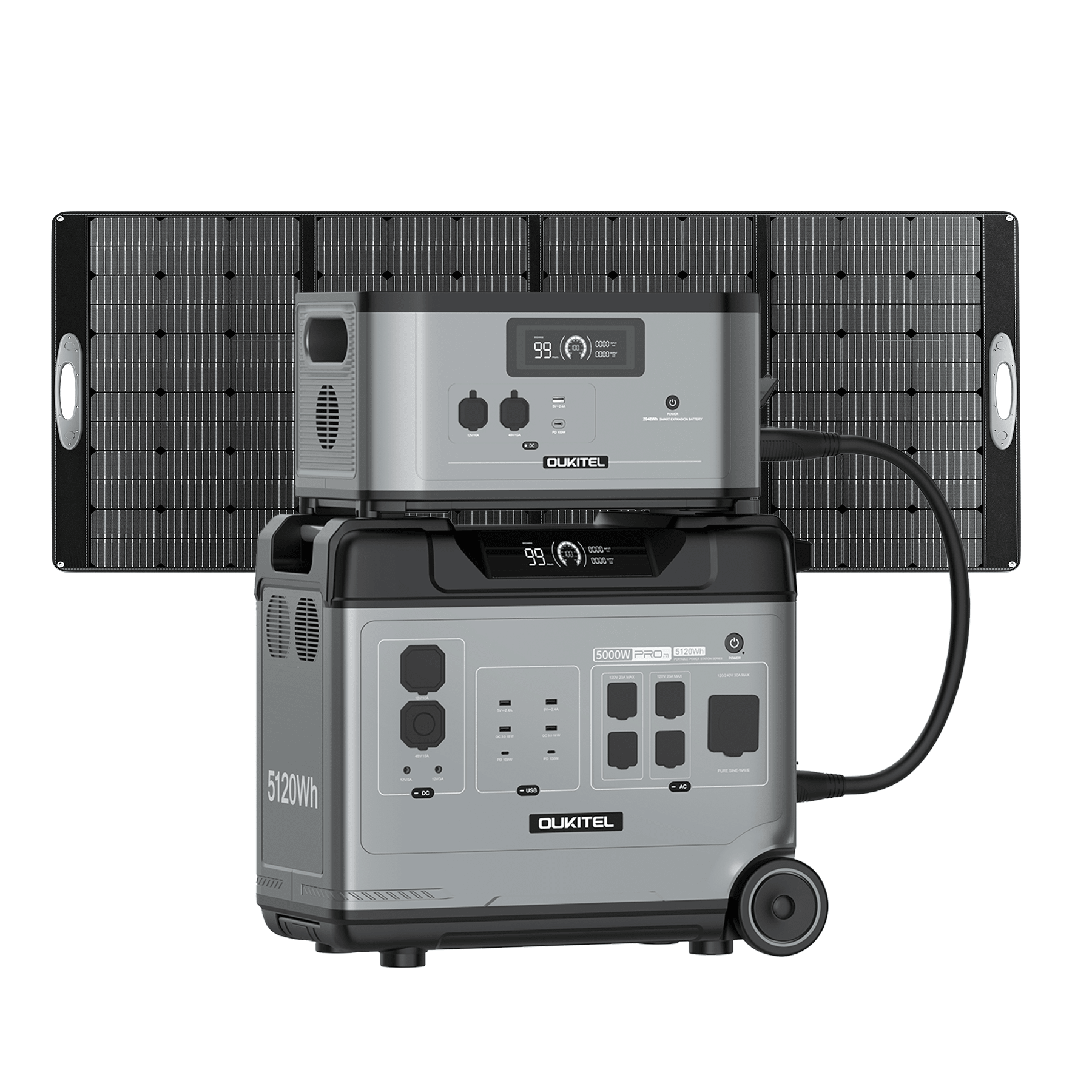

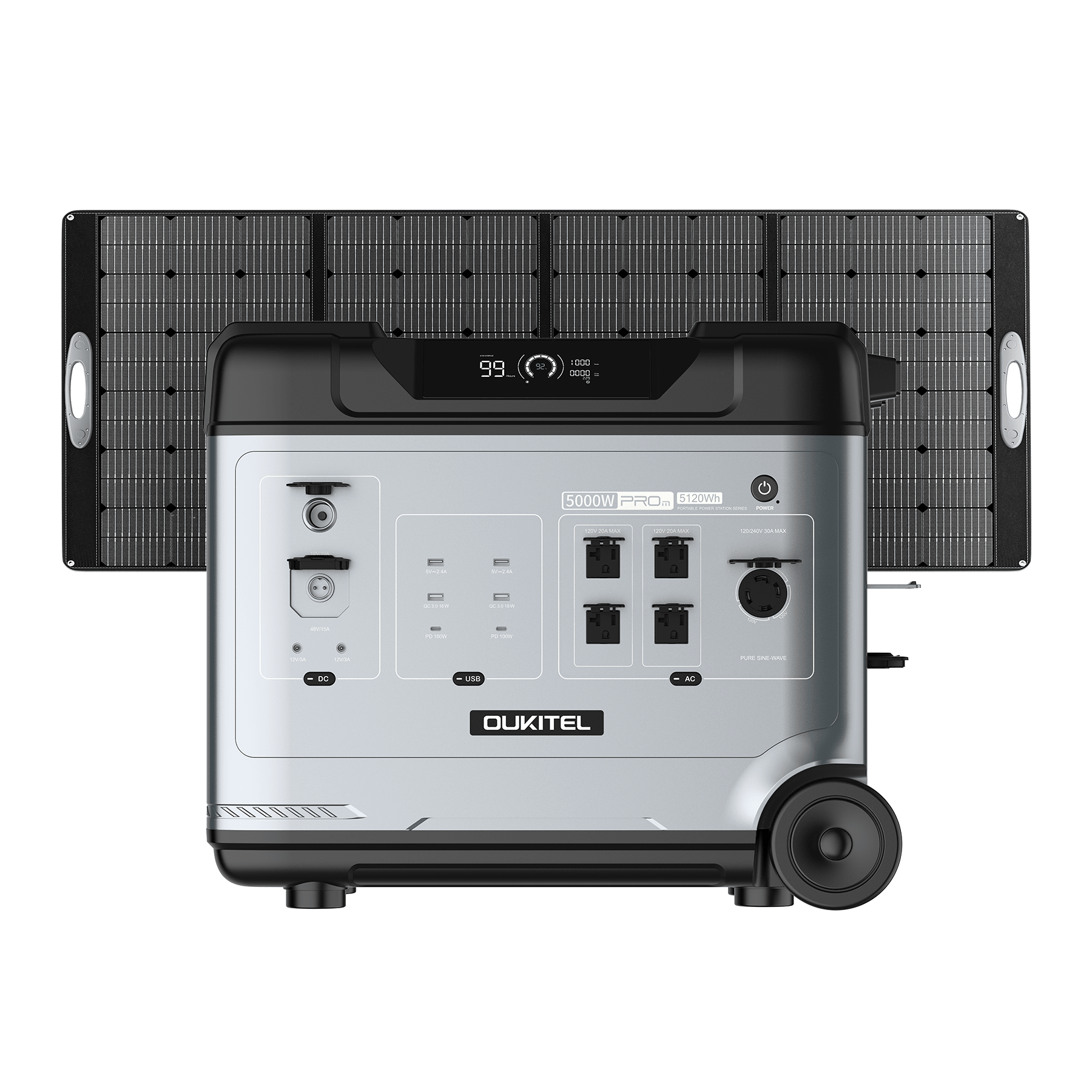

AC+Solar Charging

Backup Power for the
Entire Home

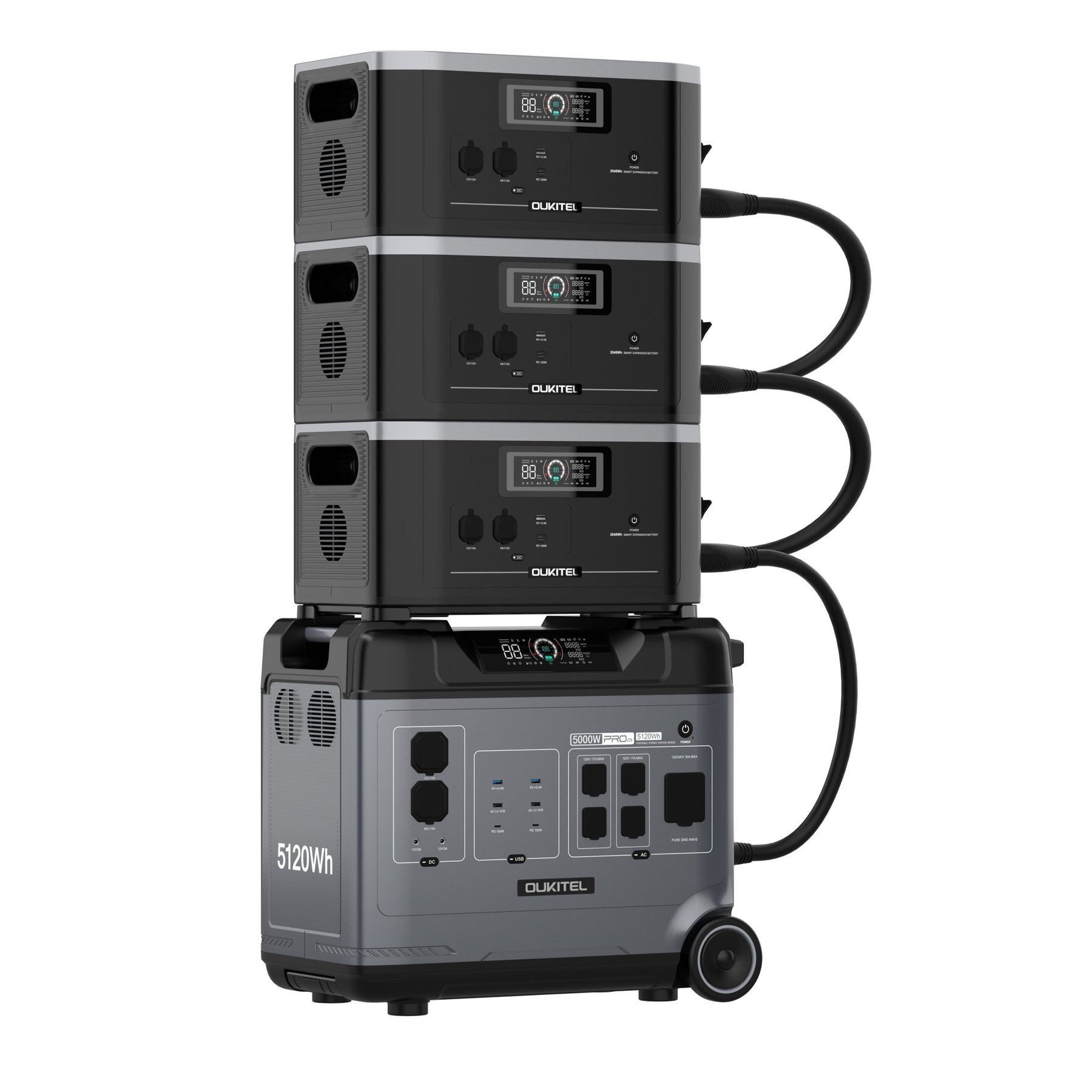

Expansion Batteries

Dual-Voltage in One Unit

Charging

Cycles LiFePO4
Long Life


Enormous capacity From 5.12KWh




Real-Time Power Insights Anytime Anywhere


Smart Monitoring
Monitor battery levels and customize charging schedules to take advantage of off-peak rates
Remote Control
Manage your power on the go, from anywhere
Power Tracking
Track your historical energy usage through the energy analytics dashboard.
Seamless EPS Protection
Sub-10 ms switchover keeps your NAS, servers, and home entertainment safe from outages.


Power That Meets Your Needs


Charge Your Way • More Options • Less Wait
(1,800W)
Panels(2,400W)
Port(120W)


Relax with Easy RV Power
Power your road trip and RV appliances with built-in L14-30 ports.


One Power Source • Infinite Charging Options










What's in the box
- 1xBP5000 PRO MAX Power Station
- 1xAC 120V Charging Cable
- 1xAC 240V Charging Cable
- 1xCar Charging Cable
- 1xSolar Charging Cable
- 1xWarranty Card
- 1xManual
Model

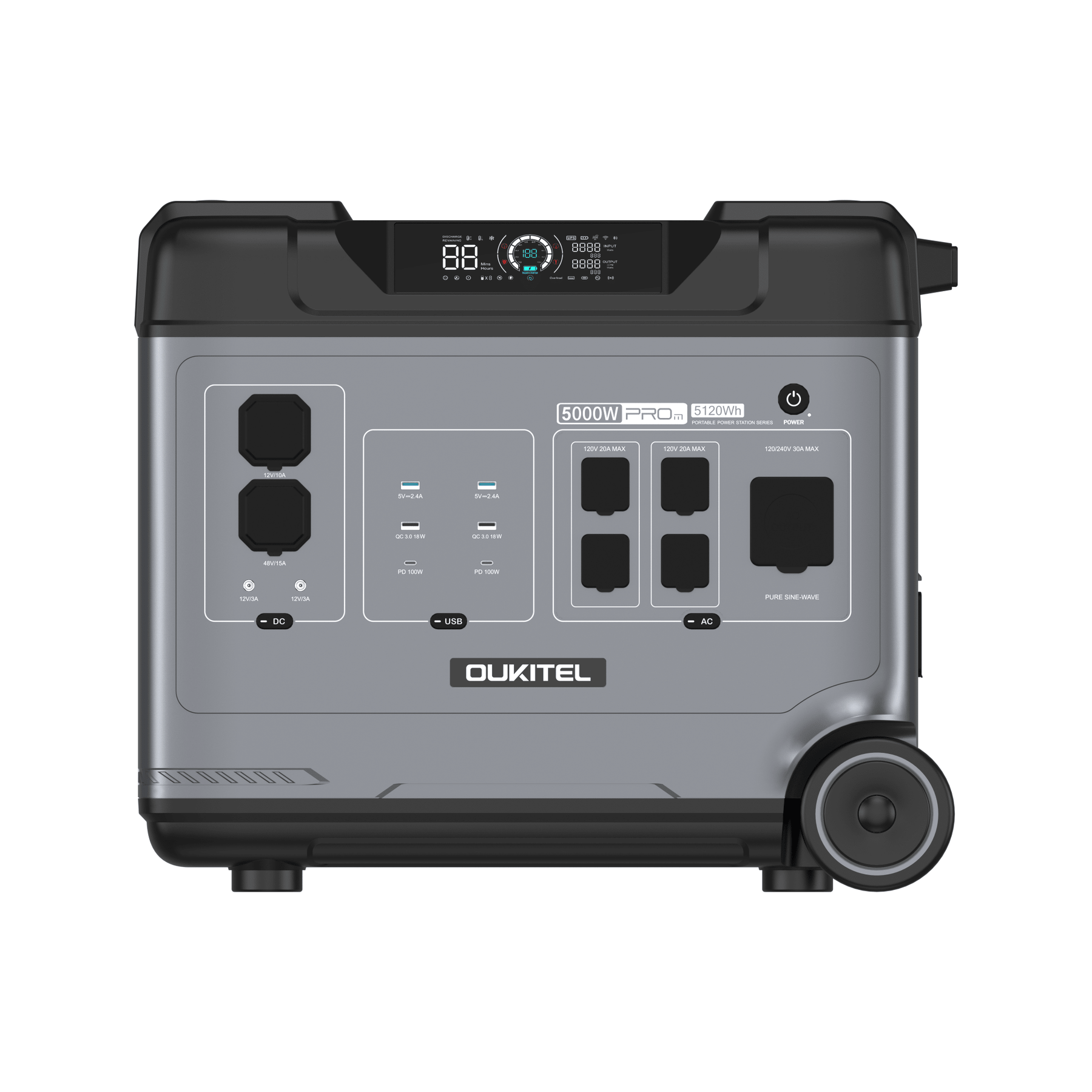

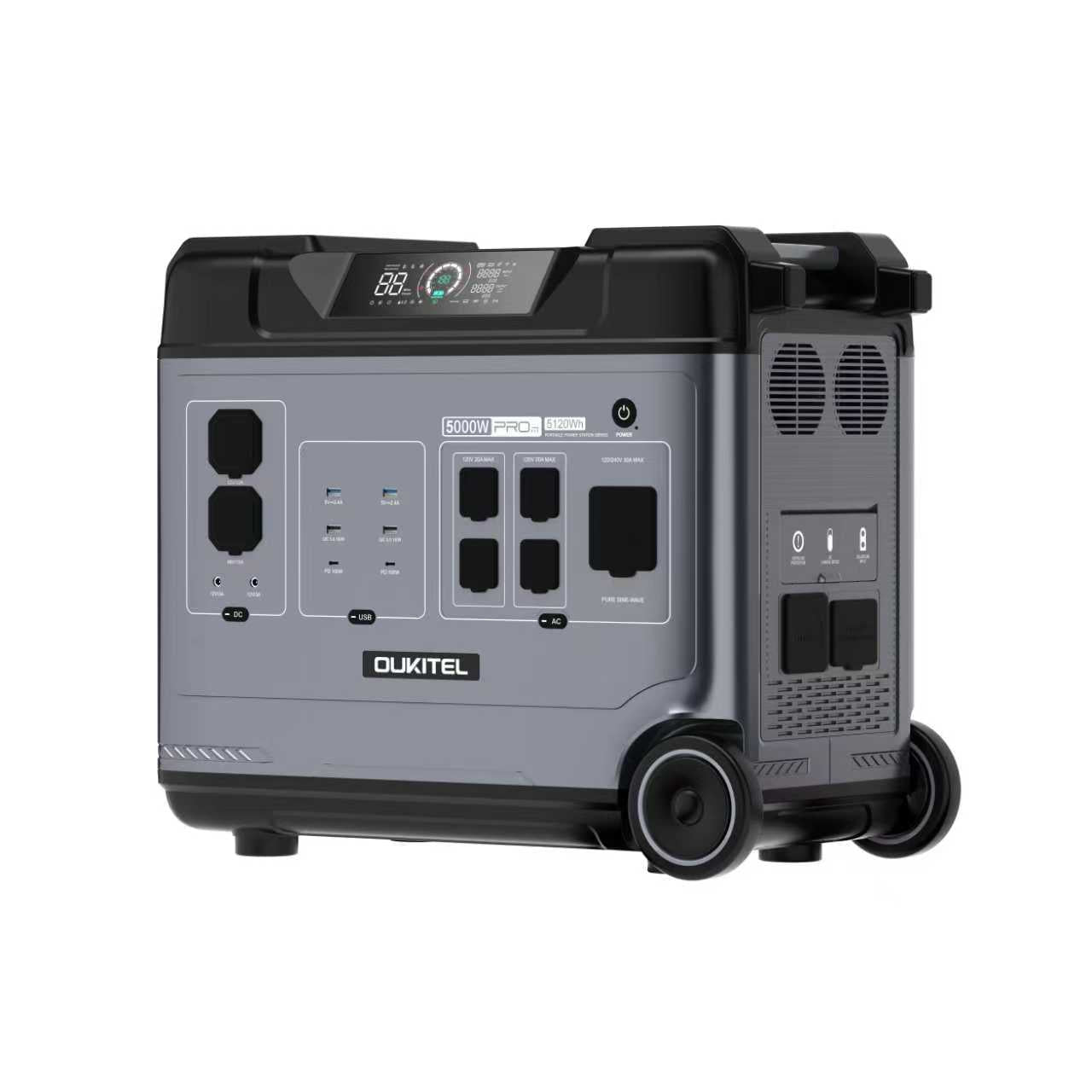

OUKITEL BP5000 Pro Max
Capacity
5120Wh(51.2V 100Ah)
Rated Power
5000W
Surge Power
10000W
UPS Rated Power
1500W(100V)/1800W(120V)/3600W(240V),15A MAX
Scalability
Expand Up To 7*B2000
Battery Type
LiFePO4
UPS Start Time
UPS Start Time < 10 ms
Battery Safety Systems
BMS Management
Life Cycles
5000+ Cycles to 80% Original Capacity
AC Output-Area 2
2* Outlets, AC120Vac,20A MAX, 2500W MAX
AC Output- Area 1
2* Outlets, AC120Vac,20A MAX, 2500W MAX
Output Wave
Pure Sine Wave
AC Output-3 Split phase
1* Outlet, AC120Vac/240Vac, 30A MAX; only 120V, 2500W MAX; only 240V,5000W MAX
USB-QC3.0
2* 18W (5V/3A ; 9V/2A; 12V/1.5A)
USB-A Port
2*12W (5V/2.4A) USB-A
DC Output Ports
2*DC5521(12V/3A, 36W Max each)
1*RV Aviation Port(48V/15A, 720W Max, GX16 2-Pin)
1*Car Charging Port(12V/10A, 120W Max)
USB-C Port
2* PD100W(5V3A;9V3A;12V3A;15V3A;20V5A)
AC + Solar Charging(Max.2800W)
80% - 1 h 25 min
AC Charging(Max.1800W)
80% - 2 hrs 29 min
Solar Charging(Max.1000W)
100% - 4 hrs 30 min
Car Charging
12V/8A,48V/10A
Protection
Rescue & Short-circuit,Over-current, Over-voltage, Low- voltage, Over-load, Over-temperature ,Over-charge
Cooling Strategy
6*Fans
Net Weight
121.25lbs(55kg)
Dimensions (L*W*H mm)
L550*W299*487
Operating Temperature
32℉-104℉/0℃-40℃
Storage Temperature
-4℉-104℉/-10℃-40℃
Certifications
CE,FCC,PSE,UN38.3,EMC,LVD,RoHS,MSDS
Warranty
1+2 Years(Subscribed)
